Palm-sized, full featured controller with onboard Wi-Fi, polyphony and digital motor control.
Media enabled show playback devices.
ProCommander® Series
Solid State Show Controllers
The ProCommander® Series features solid-state show controllers built for playback of synchronous audio, video, animation, lighting, and mechanical action. The controllers’ flexible architecture options and open control protocols allow inspired attractions to be designed without hardware limitations.
Designed for daily operation in harsh environments, ProCommanders® are built to run 24 hours a day, 7 days a week. Shows can be set to loop on power-up; be triggered internally by other timelines, digital or analog inputs; wait to sync with incoming SMPTE timecode; or simply begin from a UDP command via a touchscreen or theater automation system.
ProCommander® Models
Up to 16 channels of audio
Essential show control features.
8 digital outputs
8 digital inputs (8 analog)
DMX/Art-Net Input/Output
Stereo class-D Amplifier
16 digital outputs
16 digital inputs (8 analog)
3 Serial Ports
DMX/Art-Net Input/Output
4 servo outputs
4 Analog 0-10vdc
SMPTE/FSK - In/Out
(replaces WEMC, PC3, PC3)
Wide variety of input and output connections.
16 digital outputs
16 digital inputs (8 analog)
DMX/Art-Net Input/Output
Advanced audio abilities
SMPTE/FSK/MTC/Art-Net Timecode
PWM outputs
4 0-10vdc analog outputs
Balanced TRS 1/4" outputs
(replaces LX/LX2)
8x Stereo audio, with advanced mixing, timecode and more.
Common Features:
- DMX Output (1x Universe via onboard or Art-Net)
- Up to 4 universes of lighting control (via Weigl DMX Pro I/O™)
- Up to 16 digital inputs (8 Analog)
- Up to 16 digital output (8 PWM)
- 4 R/C servo outputs (PC3 Only)
- 4 Analog 0-10vdc outputs (PC4, PC16 – Legacy PC2/3/LX only)
- Stereo audio output standard
- Up to 8x Stereo balanced audio output
- Ethernet onboard
- WEM-NET In/out on most models (Not included on ES)
- High powered Class-D stereo amplifier
- High power MOSFET Transistor switching (48vdc/500ma)
Technical Highlights:
- 4 models to choose from
- PNP, NPN, Relay output options
- 4 Universes of DMX (via Pro I/O™)
- 1 Universe of internal DMX/Art-Net
- MP3, AAC, OGG audio playback
- Built in playback storage (MicroSD/SD)
- Network enabled
- Up to 16 channels of audio output
- High frame rate and resolution
- Up to 32 Pro I/O add-on modules
- High amperage Mosfet output
- Cross platform software
The ProCommander ES provides the essential control points you need. Harnessing all the logic functionality of the ProCommander 2, the ProCommander ES is a powerful solution for applications requiring fewer I/O’s.
Features:
- DMX output (1x Universe via onboard or ArtNet)
- Up to 4x universes of lighting control (via Weigl DMX Pro I/O™)
- 8 digital inputs
- 8 digital outputs
- Stereo out
- High powered on-board Class-D stereo amp
- On-board Ethernet/network Ready
- Mounts in 1/4 rack space or DIN rail (sold separately)
- Integrated MicroSD storage for audio/timeline data
- High power MOSFET Transistors
Technical Highlights:
- Network jack for UDP control messaging, configuration, firmware updates and show file uploads
- Play up to 22 timelines (1 audio playback stream concurrently) to allow management of a variety of tasks around your exhibit
- Powerful Class-D amplifier provides in-place amplification throughout the exhibit space
- Sophisticated scripting language in addition to easy to use timeline software provides powerful control options

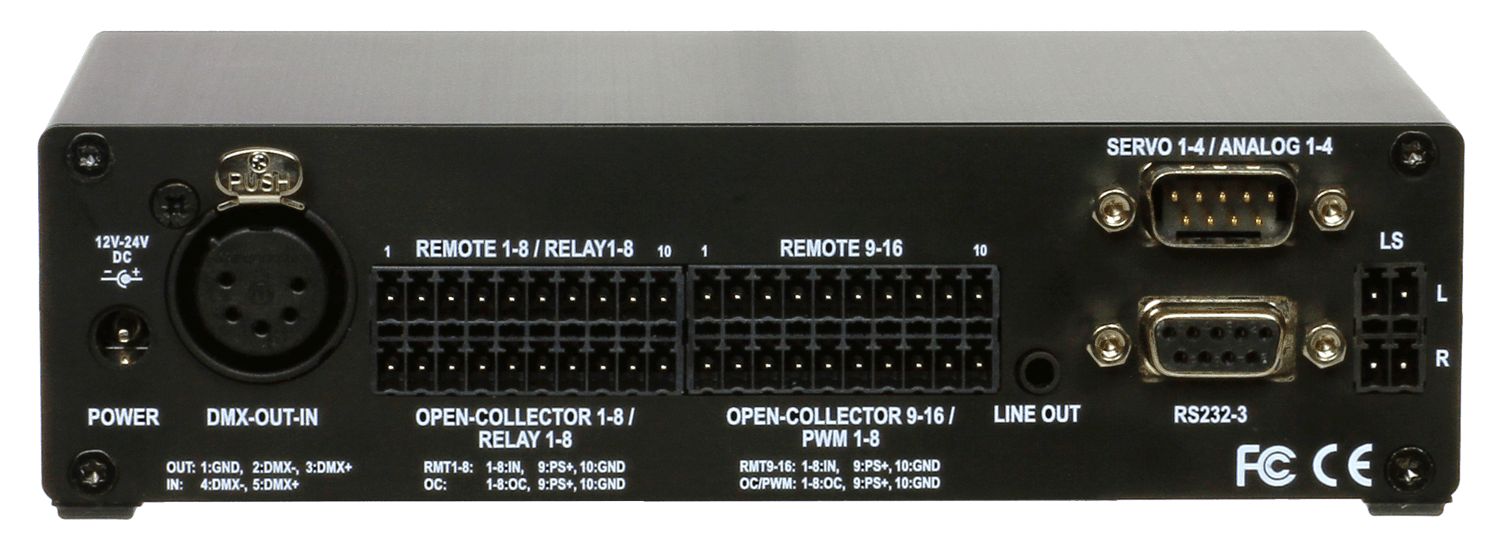

The ProCommander 3 is the most comprehensive small show controller available. Engineered using the highest level of quality standards, this controller supports a wide variety of industry standard I/O’s.
FEATURES:
- 16 digital outputs at 48VDC/500ma
- 16 digital inputs or 8 digital and 8 analog inputs
- 3 RS-232 serial ports (1 RS-485 capable with adapter)
- DMX Input/Output (1x Universe via onboard or ArtNet)
- Up to 4x universes of lighting control (via Weigl DMX Pro I/O™)
- 4 Analog outputs
- 4 servo outputs
- On-board Ethernet
- High power MOSFET transistors
- Mounts in 1/2 rack space
- High powered on-board class-D stereo amp
- Integrated DMX merger with LTP, HTP modes
- Integrated MicroSD storage for audio/timeline data
- 8 high powered relays optional
- IR remote control available
- PNP positive driver option available
- Stereo audio playbackw with expanded memory and Control.INI functionality
Technical Highlights:
- DMX merging, input and systems integration – eliminate additional hardware
- Network jack for UDP messaging and show file uploads
- IR remote control enables custom programming of features from our command list or the off-the-shelf firmware list
- Onboard Analog (4) and Servo (4) control outputs offer additional low-cost flexibility
- User configurable serial ports (3) allow for both input and output integrations with legacy and industrial show devices
- Play up to 22 timelines (1 audio playback stream concurrently) to allow management of a variety of tasks around your exhibit
- Powerful Class-D amplifier provides in-place amplification throughout the exhibit space
- DMX show start tracking (start shows at 30%, 50% DMX value etc.)
- DMX & Artnet output mapping for digital, analog, PWM and servo outputs
- Sophisticated scripting language in addition to easy to use timeline software provides powerful control options
The ProCommander PHX is a first of its class solid-state show controller featuring polyphonic audio. The real-time dynamic layering of audio tracks allows for unprecedented programming opportunities. Utilize the dual stereo outputs and internal mixing to create complex audio scapes without interrupting show routines.
Ideal For:
- Synchronized Lighting
- Animatronics
- Interactive Exhibits
- Timeline Driven Shows
- Standalone Playback
- Mixed media exhibits
- Synchronized multi-channel audio playback, up to 4-channels
- Parade floats & rolling stock
Outstanding Features:
- Polyphonic Audio Layering
- Dual-zone Support
- UDP Audio Mix, Level, Tone Control
- SMPTE Timecode In & Out
- FSK Timecode In & Out
- MTC Network In & Out
- Real Time Clock & Scheduler
Technical Highlights:
- 16 digital outputs at 48VDC/500mA+
- 16 digital inputs or 8 Analog Inputs
- 2 RS-232 serial ports (1 RS-485 capable with adapter)
- DMX Input/Output (1x Universe via onboard or ArtNet)
- Up to 4x universes of lighting control (via Weigl DMX Pro I/O™)
- On-board Ethernet/Network Ready
- PNP Positive driver optional
- 8x high-powered relays optional
- 4-channel integrated amplifier
- Integrated DMX merger with LTP, HTP modes
- DMX show start tracking (start shows at 30%, 50% DMX value etc.)
- Integrated memory card storage for audio/timeline data
- 4-channel audio synchronized audio playback
- Play up to 18 timelines (2 audio playback streams concurrently) to allow management of a variety of tasks around your exhibit
- Sophisticated scripting language in addition to easy to use timeline software provides powerful control options
The ProCommander® LTCD brings integrated, frame synced video playback to the ProCommander Series by combining the features of the ProCommander 3 and a CE labs® MP-700R into a single integrated rack unit. Create a complete small theater or video-driven exhibit in a single rack space.
The ProCommander LTC™ provides solid state playback, utilizing frame accurate synchronization to SMPTE LTC timecode. It offers show programmability similar to other ProCommander devices but with additional external and video focused synchronization features for larger show environments.
Features:
** No Longer Available. Replacement: ProCommander® VX and Pro VP
- DMX output
- Up to 4x universes of lighting control (via network and onboard)
- Real-time clock and scheduler
- Balanced Stereo Audio
- 8 digital outputs
- 16 digital inputs
- 6 RS-232 serial ports
- Integrated networking
- Internally controlled and frame accurate 1080p video playback module (optional)
- Integrated, programmable ASCII status display
- Configuration joystick, allowing front panel setup
- Single RU footprint
- Variety of video outputs when used with optional 1080p video playback module
- 4-channel audio playback, or 3-channel with internal and external SMPTE sync and generation
- Now with integrated paging and audio ducking features
Technical Highlights:
- Network jack for UDP messaging and show file uploads
- IR remote control allows for custom programming of features from our command list or an off-the-shelf firmware list
- User configurable serial ports (6) allow for both input and output integrations with legacy and industrial show devices
- Play up to 22 timelines (2 audio playback streams, 1 video stream concurrently)
- Sophisticated scripting language in addition to easy to use timeline software provides powerful control options
- Microphone and Line-input with included paging/ducking ability
The ProCommander LX2 is a full-functioned, multi-scene, multi-channel playback controller. Capable of up to 16 channels of synced playback or 8 independent stereo zones, this device can power a large theater show or an entire museum of independently zoned show playback.
Building off the ProCommander 2®, the LX starts with digital, analog, serial, and UDP inputs and outputs. It adds an asynchronous universe of DMX input and output, and it can add, merge, combine or take over DMX values from any of its multiple internal shows, as well as incoming DMX values from a DMX console or environmental lighting system. These features allow for complex integration opportunities.
When it comes to managing large synchronized shows, the LX has no match. Either sourcing 16 channels of audio and SMPTE or synchronizing multiple zones of animation, lighting and show action through incoming SMPTE, complex show control has never been better.
Features:
- 16 channels of high quality audio output
- Multiple shows and zones can be accessed simultaneously on separate audio pairs
- 1/4″ TRS Balanced Audio Outputs
- Blue LCD status information display
- UDP Network connection for programming, triggering shows and diagnostics
- USB connection
- 5-pin DMX input/output
- 4 high analog outputs
- 8 Stereo Class-D Amplifier (optional)
- SMPTE timecode input and output allows all shows to “jam sync” or source from a master show signal
- Fits 1RU rack space
- Now with expanded memory and Control.ini capability
Technical Highlights:
- 16 digital outputs at 48VDC/500mA
- 16 digital inputs OR 8 digital and 8 analog inputs
- 3 RS-232 serial ports (1 RS-485 capable with adapter)
- DMX Input/Output (1x Universe via onboard or ArtNet)
- Up to 4x universes of lighting control (via Weigl DMX Pro I/O™)
- 4 analog outputs
- On-board Ethernet/Network ready
- 8x high-powered relays optional
- Optional high powered amplifier
- Integrated DMX merger with LTP, HTP modes
- Integrated memory card storage for audio/timeline data
- Sophisticated scripting language in addition to easy to use timeline software provides powerful control options
- Play up to 22 timelines (8 audio playback streams concurrently) to allow management of a variety of tasks around your exhibit
- DMX show start tracking (start shows at 30%, 50% DMX value etc.)
Elevate your experience with X Series:
ProCommander® original series are the ones that started it all. We continue to sell, support and service nearly every model of ProCommander® we’ve built. In 2018, we expanded upon this and released the X Series controllers, now including polyphony, 16-Universes of sACN and Art-Net and the ability to be used directly as a CANOpen master.
In early 2020, these controllers were expanded even further to include PTP, FSK, MTC, Art-Net and AES-67. We also replaced the ProCommander® LTC with the new ProCommander® VX for dual 1080p or 4k video. Both series of show controllers continue to serve unique and varied markets accordingly.
Advanced Sync and Playback
Timecode and network management
Remote Show Management:

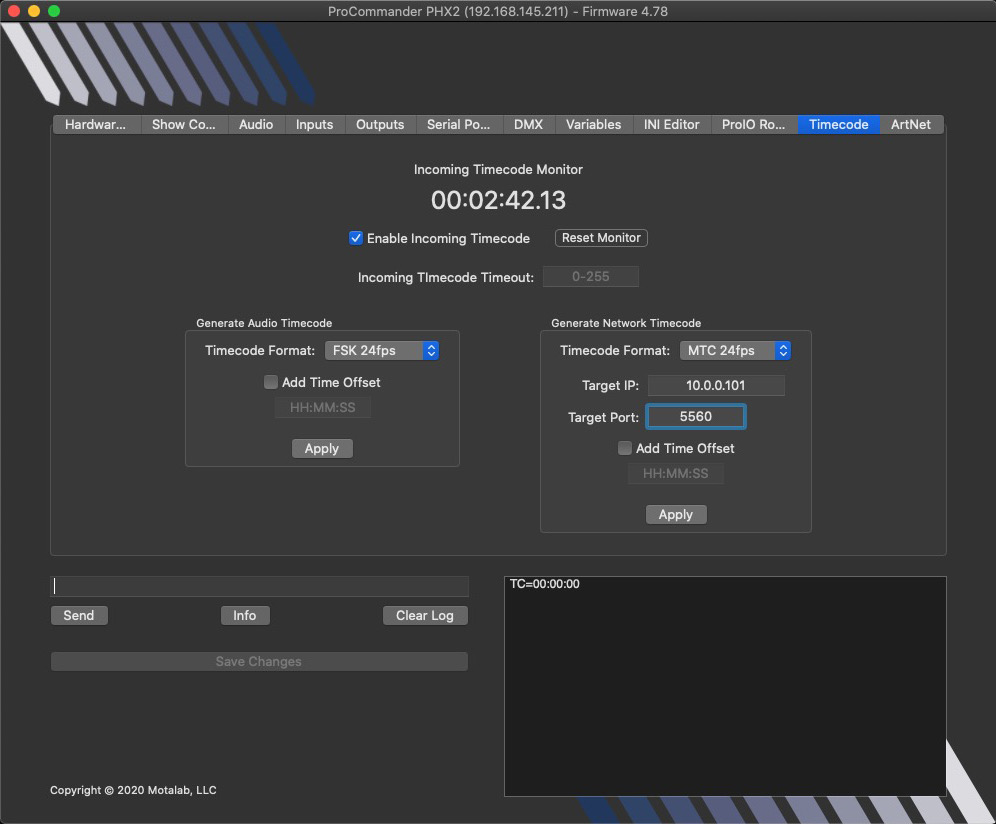

ProCommanders® are configurable through our free Hardware Configurator, replacing complicated command prompts with a simple user interface. For more advanced programming, you can use a supported timeline programming application to program and playback synchronous audio, video, animation and lighting.
An asynchronous command structure employs UDP messaging through simple ASCII and HEX commands, opening integration possibilities to nearly any available system—and enabling you to build innovative, interactive exhibits.
Timecode Sync:
Select ProCommander® controllers (ProCommander® 4, ProCommander® 16 & legacy PHX/LX) support show sync via timecode. Mix, match and regenerate network (MTC, Art-Net) and audio formats (LTC, FSK). Shows can edge trigger, or jam-sync with ease-in. Jump forwards or backwards from external time commands and the show tracks as expected. Use a ProCommander® as a timecode master to generate or re-generate timecode for other systems to follow.
In rehearsals? Showforge® and Conductor both track their timelines to device SMPTE or direct connections to each programming machine (Timeline applications support network timecode formats only without external hardware, limitations may apply). Connect multiple ProCommanders® through any of these common industry standards to expand your show and output abilities.
Once a show is programmed, ProCommanders® can store all shows on a single memory card. All shows can be managed by either the onboard serial ports or through our bi-directional WEM | Script™ command protocol via UDP.
Visual Timeline Show Creation
Tools for MacOS & PC
Timeline
Weigl hardware can be programmed visually through one of our timeline software programs. Each offer the visualization of data, including synchronous lighting, animation, show action and control data – perfectly in-sync with audio and video playback. Regardless of the nature of physical control (digital, analog, DMX, etc.) the timeline recording interface remains consistent.
For more information on Showforge® or Conductor, please select below.
Build your shows using heads up real-time puppeteering or lighting console recording. Edit with non-linear tools and envelopes, or finesse with our unique interactive plot mode. Our fastest workflow yet, built from the ground up by Weigl for deep integrated support. For MacOS.
Conductor is a timeline-based show control programming and production application. It’s the perfect design for creative professionals who want to spend more time creating and less time programming. For PC.
Where to Buy:
Purchase all ProCommander® models from select resellers or Weiglshop.com (login required, shipping within the Americas only):
